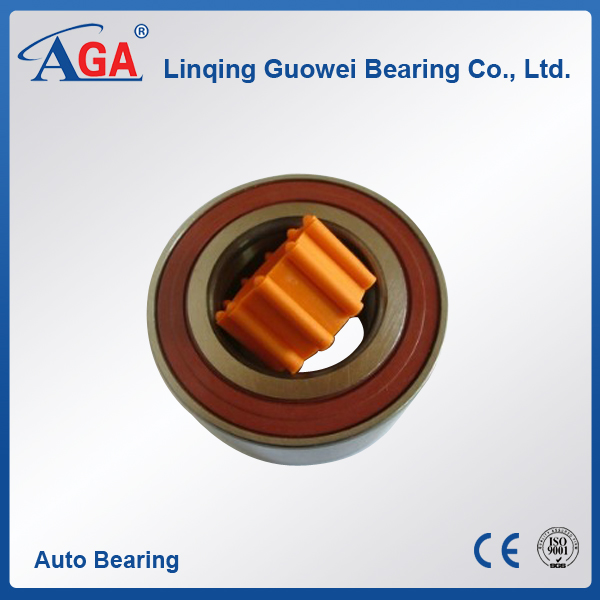

The DAC type auto wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals.
Advantages of DAC Double row angular contact ball auto wheel bearing
1.No need for pre-load adjustment at assembly.
After press-fitting of bearings, it is only necessary to tighten nuts to the specified torque
2.compactness and high performance of wheel axles
No need for parts such as sapacers, thus minimizing axial space requirements Therefore, highly rigid and short axles can be used.
3.no need for grease replenishment at assembly
4.high productivity The number of parts is reduced with simplified assembly work.
Dimension(mm)
Bearing No. d*D*H contrast
DAC255200206 25*52*20.6 156704
DAC25520037 25*52*37 445539AA
DAC25520040 25*52*40
DAC25520042 25*52*42 25BWD01
DAC25520043 25*52*43
DAC25520045/43 25*52*45/43
DAC25550045 25*55*45 7701208058
DAC25550048 25*55*48
DAC25560032 25*56*32 BAH5000/445979
DAC25620048 25*62*48
DAC25680045 25*68*45
DAC27530045/43 27*53*45/43
DAC27530043 27*53*43
DAC28580042 28*58*42 28BWD03A
DAC28580044 28*58*44
DAC28610042 28*61*42 28BWD01ACA60
DAC29530037 29*53*37 801023AB/BTH1026/516007
DAC30600337 30*60.03*37 BA2B633313C
DAC30620038 30*62*38
DAC30630042 30*63*42 30BWD01
DAC30640042 30*64*42 DAC3064W2RKB
DAC30680045 30*68*45 30BWD04CA19
DAC32720025/19 32*72*25/19 32BCV07S
DAC32720045 32*72*45 90369-32003/32BWD06
DAC32730054 32*73*54 DAC3273W
DAC34640037 34*64*37 34BWD11
DAC34660037 34*66*37 636114A
DAC34670037 34*67*37
DAC35618040 35*61.8*40
DAC35620040 35*62*40
DAC35640037 35*64*37 BAH0042
DAC35650037 35*65*37 35BWD19E
DAC35660033 35*66*33
DAC35670042 35*67*42 35BWD24
DAC35680233/30 35*68.02*33/30 35BWD07CA141
DAC35680039/36 35*68*39/36 35BWD16
DAC35680037 35*68*37 BAHB633295/BAH-0052C
DAC35680040 35*68*40
DAC35680042 35*68*42
DAC35680045 35*68*45
DAC35720033 35*72*33 446762B/BAH-0013D
DAC35770042 35*77*42 90369-35034
DAC35800047 35*80*47
DAC36640042 36*64*42
|
